Buy a used SYMEX P1000 storage vessel with agitator

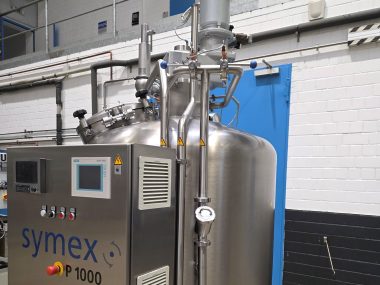

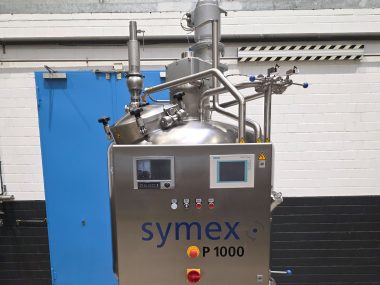

Symex P1000 Storage Tank for Sale – GMP Stainless Steel Tank for Pharmaceuticals & Cosmetics
For sale is a high-quality Symex P1000 stainless steel storage tank with a usable volume of approximately 1000 liters.
The system is specifically designed for the storage, buffering, and transfer of pharmaceutical and cosmetic products and meets stringent requirements for hygiene, documentation, and process safety. Depending on the application, this type of vessel is also referred to as a storage tank, process vessel, agitated tank, buffer tank or pre-mix tank.
Use as a storage and process tank for pharmaceutical and cosmetic products
Symex P1000 – Condition & Application
✔ Pharmaceutical grade (GMP compliant)
✔ Pressure and vacuum capable
✔ 316L/316Ti stainless steel in contact with product
✔ Documentation & certificates available
📍 Location: Weyhe near Bremen
Status: available (as of October 2026)
Why buy a Symex P1000?
The Symex P1000 is not just a tank – it's a fully-fledged process vessel:
✔ Storage under vacuum or pressure
✔ Integrated agitator for product homogeneity
✔ CIP-capable (fully cleanable)
✔ Suitable for sensitive pharmaceutical products
✔ Perfect as a buffer tank between process steps
Ideal for production, filling, or intermediate storage
Typical applications of the Symex P1000
- Storage of pharmaceutical liquids
- Buffer tank in production lines
- Intermediate storage before filling
- Liquid/liquid mixtures
- Transfer between systems
Technical Data – Symex P1000
Tank Specifications
- Usable volume: approx. 1000 liters
- Minimum volume: approx. 250 liters
- Design: vertical pressure vessel
- Pressure range: -1 to +1 bar
- Temperature: up to approx. 95 °C
✔ Pressure and vacuum capable
✔ Sterile process conditions possible
Designed according to PED / AD2000
Construction & Design
- Single-walled stainless steel tank
- Mounted on 4 stainless steel legs
- Transport frame for forklift handling
- Welded lid (pressure-resistant)
- DN 450 manhole with inspection window
✔ Robust, industrial construction
✔ Easy maintenance & access
Agitator System
- Anchor agitator (slow-speed)
- Power: approx. 4 kW
- Speed: approx. 5 – 20 rpm (adjustable)
- Optionally removable
- Baffle to prevent stratification
✔ Gentle product movement
✔ Prevention of Sedimentation
CIP Cleaning System
- 4 Rotating Spray Nozzles (Toftejorg)
- Additional Cleaning Nozzles & Washing Ball
- 360° Cleaning
✔ Fully Cleanable
✔ Pharmaceutical/GMP Compliant
Process Connections & Equipment
- Vacuum Connection
- Nitrogen Connection (N₂)
- Safety Valve
- Temperature Measurement (Pt100)
- Pressure Measurement (4–20 mA)
- Floor Drain / Filling Port
- CIP Connection
✔ Fully Integrated into Production Processes
Control & Data Acquisition
- Siemens PLC (S7)
- Operator Panel (Touch / TP170)
- Data Recording System (Endress+Hauser)
Includes:
✔ Temperature
✔ Pressure
✔ Agitator Speed
Integrated Process Monitoring
Weighing System
- Integrated Load Cells (Siemens SIWAREX)
- Precise Level Detection
✔ Ideal for batch processes
✔ High dosing accuracy
Material & Surfaces
- Product-contacting parts: 316L / 316Ti stainless steel
- Surface roughness: Ra < 0.4 µm
- FDA-compliant seals (Viton)
✔ Hygienic design
✔ Pharmaceutical compliant
Delivery and processing
- Ex-Works delivery
- Turnkey projects available (including commissioning)
- 12-month warranty (excluding wear parts)
- International shipping available
Request a Symex P1000 quote
Contact us now for a free, no-obligation quote:
📧 info@s-vt.net
Please provide your complete company details.
Frequently Asked Questions about the Symex P1000
Can the Symex P1000 be inspected?
Yes. The vessel is located in Weyhe near Bremen, Germany, and can be inspected by appointment.
What filling volumes are possible?
The working volume is approx. 1,000 liters, the minimum volume approx. 250 liters. The fill level is measured precisely via integrated load cells (Siemens SIWAREX).
What pressure and temperature ranges is the vessel designed for?
The vertical pressure vessel is rated for -1 to +1 bar and temperatures up to approx. 95 °C, designed according to PED / AD2000. Storage under vacuum, pressure or nitrogen is possible.
Is the Symex P1000 suitable for GMP applications?
Yes. Product-contact parts are made of stainless steel 316L / 316Ti with a surface roughness of Ra < 0.4 µm, the seals are FDA-compliant, and the CIP system with 4 rotating spray nozzles cleans the vessel completely. Documentation and certificates are available.
Do you ship internationally?
Yes, international shipping is possible. Delivery is Ex-Works or, on request, as a turn-key project including commissioning.
Is there a warranty?
Yes, we provide a 12-month warranty (excluding wear parts).
Disclaimer
This is a non-binding offer from SEEFRIED Verfahrenstechnik GmbH as an independent supplier.
There is no business relationship with the manufacturer.
All trademarks mentioned are the property of their respective owners and are used solely for the purpose of identifying the products offered.
This is not an offer from the manufacturer
Do you have questions?
Do you have questions about the Symex P1000? Call us at +49 4203 789492 or send us your inquiry. We will get back to you promptly with details, additional photos and a viewing appointment.
Download Flyer as PDF
Download the flyer about the Symex P1000 storage vessel
